High-strength thermal insulation ceramic fiber textiles for industrial furnaces, excellent insulation and long-lasting durability!

Name: High-strength thermal insulation ceramic fiber textiles for industrial furnaces, excellent insulation and long-lasting durability!
Rating: 5.0 (50 reviews)

 

Contact us now to get a detailed quote and product proposal for ceramic fiber textiles and start a new experience of efficient thermal insulation!

Product Parameters

The main parameters

	stainless steel wire	glass fiber yarn
Operating temperature (°C)	1050	650
Melting point (°C)	1760	1760
Density (Kg/m3)	350-600	350-600
Thermal conductivity (W/mK, ASTM C201, average at 800°C)	0.17	0.17
Fire loss (%)	10-20	10-20
Chemical composition (%)
Al2O3	46.6	46.6
Al2O3+ SiO2	99.4	99.4
Available sizes
Cloth	Width : 1000-1500mm , Thickness : 2 , 2.5 , 3 , 5 , 6mm
Tape	Width : 10-150mm , Thickness : 2 , 2.5 , 3 , 5 , 6 , 8 , 10mm
Wring rope	Diameter : 3 , 4 , 5 , 6 , 8 , 10 , 12 , 14 , 15 , 16 , 18 , 20 , 25 , 30 , 35 , 40mm
Round rope	Diameter : 5 , 6 , 8 , 10 , 12 , 14 , 15 , 16 , 18 , 20 , 25 , 30 , 35 , 40 , 45 , 50mm
Square rope	55 , 66 , 88 , 1010 , 1212 , 1414 , 1515 , 1616 , 1818 , 2020 , 2525 , 3030 , 3535 , 4040 , 4545 , 5050mm
Thimble	Diameter : 10 , 12 , 14 , 15 , 16 , 18 , 20 , 25mm
Yarn	Tex : 330 , 420 , 525 , 630 , 700 , 830 , 1000 , 2000 , 2500

Product Details

Product Introduction

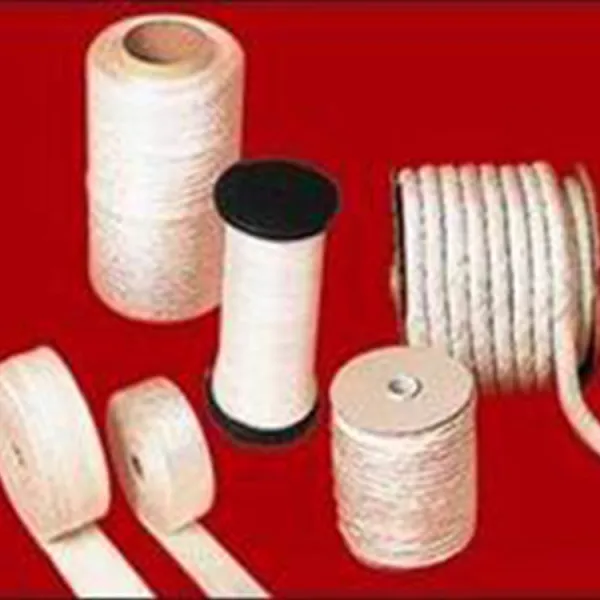

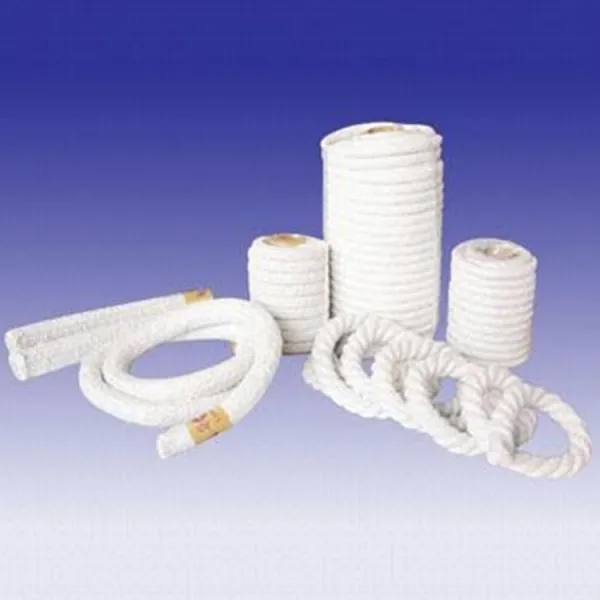

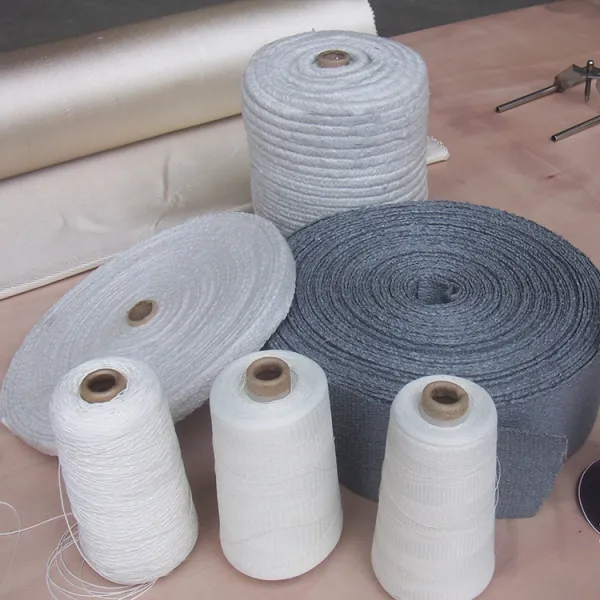

Ceramic fiber textiles are advanced thermal insulation materials composed of ceramic fiber yarns combined with glass fiber filaments or alloy steel wires. Our products include various types such as ceramic fiber garments, belts, and ropes. They exhibit high tensile strength, excellent toughness, and good workability. They have low thermal conductivity and excellent thermal insulation properties, providing reliable thermal protection for industrial furnaces, high-temperature pipelines, and other applications. They also possess excellent electrical insulation and are environmentally friendly. They can withstand extreme temperatures while maintaining the flexibility and toughness of ordinary textiles, performing reliably in critical manufacturing environments. Trusted globally, they not only effectively prevent fires but are also a key material in the manufacture of high-temperature-resistant composite materials, helping various industries improve safety, energy efficiency, and operational lifespan.

Advantages and features

1. Advanced structure combining ceramic fiber yarn with glass fiber filament or alloy steel wire. 2. High tensile strength, excellent toughness, and good workability for flexible use. 3. Low thermal conductivity for excellent insulation. 4. Excellent electrical insulation for safety and reliability. 5. Environmentally friendly, meeting green production requirements. 6. Withstands extreme temperatures while maintaining flexibility and toughness.

Application Scenario

Suitable for use in the industrial furnace industry as a thermal insulation material for industrial furnace curtains and doors; in the high-temperature piping sector, for pipe insulation; and for thermal protection of cables and fuel channels. Suitable for a wide range of industrial markets and clients requiring efficient thermal insulation, fire protection, and electrical insulation, providing high-quality thermal insulation solutions for both the manufacturing and energy sectors.
