In the chemical and metallurgical industries, high - temperature furnaces are essential equipment. However, they consume a large amount of energy and have relatively short service lives. According to industry statistics, traditional high - temperature furnaces may waste up to 30% of energy due to heat loss. This not only increases production costs but also goes against the current trend of green and low - carbon production. Therefore, finding effective energy - saving solutions for high - temperature furnaces has become an urgent need for enterprises.

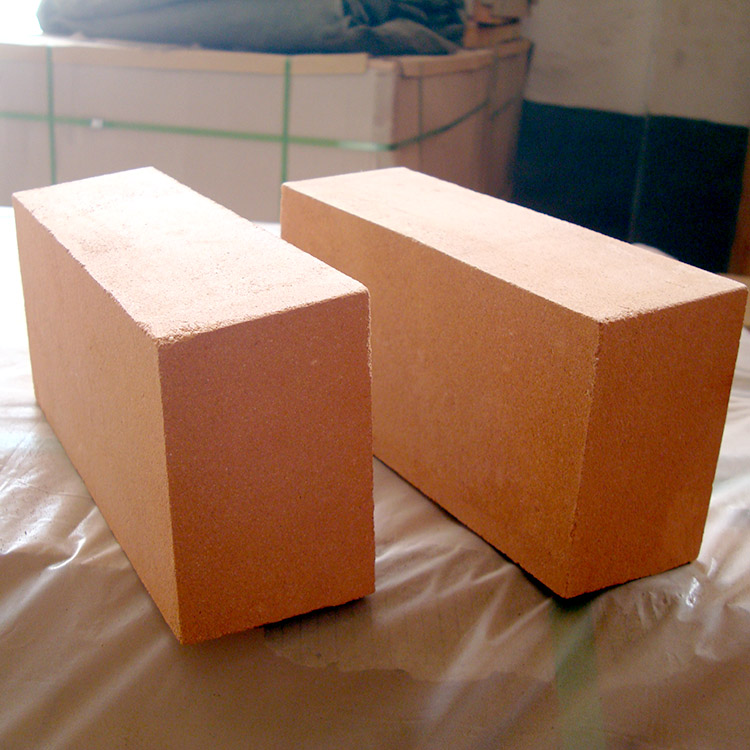

The low thermal conductivity of insulation bricks is the key to energy - saving in high - temperature furnaces. The thermal conductivity of common refractory clay insulation bricks can be as low as 0.2 - 0.3 W/(m·K) at high temperatures. This low thermal conductivity is mainly due to the special pore structure inside the insulation bricks. These pores can effectively block the heat transfer path, reducing the heat transfer rate from the furnace interior to the outside.
High - temperature furnaces often experience rapid temperature changes during operation. Insulation bricks with good anti - thermal shock resistance can withstand these temperature changes without cracking or spalling. The anti - thermal shock resistance of insulation bricks is related to their material composition and microstructure. For example, the addition of certain additives can improve the elasticity and toughness of the bricks, enabling them to better adapt to temperature changes.
During the construction of insulation bricks, controlling the masonry gaps is crucial. The ideal gap width should be between 2 - 3 mm. Excessive gaps will increase heat transfer, while too small gaps may cause the bricks to crack due to thermal expansion. Therefore, strict gap control is necessary to ensure the insulation effect.
Expansion joints are essential to accommodate the thermal expansion of insulation bricks. The spacing of expansion joints should be determined according to the size and temperature range of the furnace. Generally, for large - scale high - temperature furnaces, the expansion joint spacing can be set at 1 - 2 meters. Proper expansion joint layout can prevent the bricks from being damaged by thermal stress.
Sealing between layers is also an important part of the construction. Using high - temperature resistant sealing materials can effectively prevent heat leakage. For example, applying a layer of high - temperature sealant at the layer interface can improve the overall insulation performance of the furnace lining.
In a chemical plant, after optimizing the insulation layer design of a high - temperature furnace using the methods described in this article, the energy consumption of the furnace was reduced by 20%. At the same time, the service life of the furnace lining was extended from 2 years to 3 years. In a metallurgical enterprise, through proper construction of insulation bricks, the heat efficiency of the high - temperature furnace was increased by 15%, and the production cost was significantly reduced.
In today's context of increasing environmental protection requirements, green and low - carbon production has become an inevitable trend for enterprises. Scientific design and construction of insulation bricks can effectively reduce energy consumption and carbon emissions of high - temperature furnaces. By adopting these energy - saving measures, enterprises can not only meet environmental protection requirements but also gain a competitive edge in the market.
