How to Choose Refractory Insulation Bricks Suitable for Frequent Start - Stop Conditions: A Detailed Explanation of the Advantages of High - Strength Clay Bricks

Sunrise

2025-09-16

Solution

This article delves into the selection of appropriate refractory insulation bricks for chemical furnaces that experience frequent start - stop cycles and large temperature fluctuations. It focuses on analyzing the advantages of high - strength refractory clay insulation bricks under operating conditions below 1350°C. The article systematically introduces the key performance indicators of refractory insulation bricks, compares the technical parameters of various materials, and clarifies the significant advantages of this product in terms of energy - efficiency improvement, mechanical strength, and thermal shock resistance through practical application cases. By providing scientific selection suggestions and warnings about material selection mistakes, it helps engineers and designers effectively extend the furnace life, reduce energy consumption, improve operational safety, and enhance the overall equipment performance and economic benefits.

In the realm of chemical furnace operations, the selection of appropriate refractory insulation bricks is crucial, especially for furnaces experiencing frequent start - stop cycles and significant temperature fluctuations. This article delves into the process of choosing the right refractory insulation bricks for such demanding conditions, with a particular focus on the advantages of high - strength refractory clay insulation bricks under 1350°C.

Understanding the Key Performance Indicators

To make an informed decision, it's essential to understand the core performance parameters of refractory insulation bricks. These include thermal conductivity, mechanical strength, thermal shock resistance, and linear change rate.

Thermal Conductivity: A lower thermal conductivity indicates better insulation performance, which can effectively reduce heat loss and energy consumption in the furnace. For example, high - strength refractory clay insulation bricks typically have a thermal conductivity of around 0.2 - 0.3 W/(m·K) at 1000°C, compared to some other materials that may have higher values.
Mechanical Strength: It is vital for withstanding the mechanical stress during operation. High - strength refractory clay insulation bricks can have a compressive strength of up to 20 - 30 MPa, ensuring they can endure the weight and pressure inside the furnace.
Thermal Shock Resistance: This property determines the brick's ability to resist cracking and spalling when subjected to rapid temperature changes. High - strength refractory clay insulation bricks show excellent thermal shock resistance, being able to withstand over 20 - 30 thermal cycles between room temperature and 1000°C without significant damage.
Linear Change Rate: A low linear change rate means the brick maintains its shape and dimensions more stably under high - temperature conditions, which is crucial for maintaining the integrity of the furnace lining.

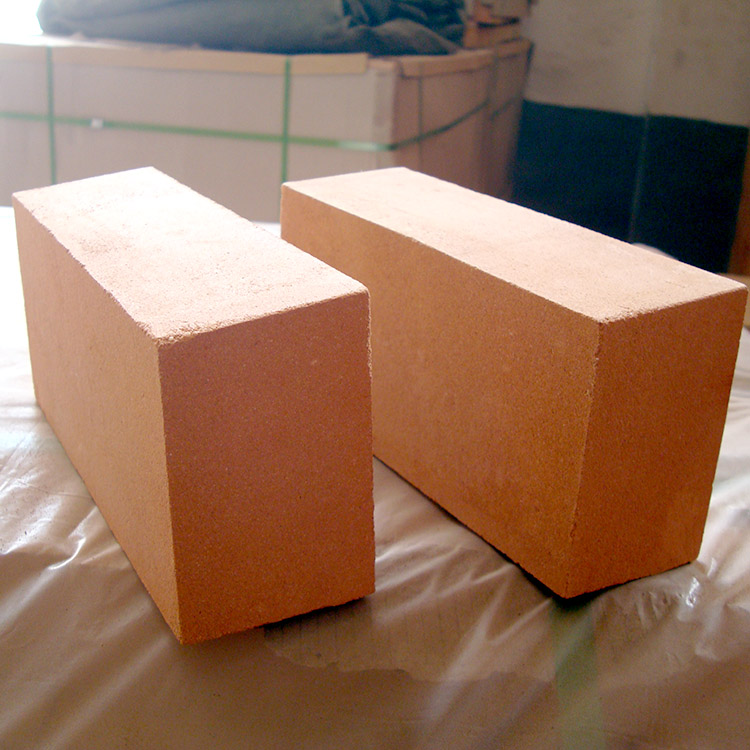

$Comparison of key performance indicators of different refractory insulation bricks$

Comparison of Different Materials

Let's compare high - strength refractory clay insulation bricks with other common materials through a table:

Material	Thermal Conductivity (W/(m·K) at 1000°C)	Compressive Strength (MPa)	Thermal Shock Resistance (cycles)	Linear Change Rate (%) at 1000°C
High - strength refractory clay insulation brick	0.2 - 0.3	20 - 30	20 - 30	< 0.5
High - alumina brick	0.3 - 0.4	15 - 25	10 - 15	< 0.6
Ordinary clay brick	0.4 - 0.5	10 - 15	5 - 10	< 0.8
Hollow ball brick	0.15 - 0.25	8 - 12	8 - 12	< 0.7

From the table, it's clear that high - strength refractory clay insulation bricks offer a good balance of performance in terms of thermal conductivity, mechanical strength, and thermal shock resistance.

Real - World Applications and Case Studies

In a chemical reaction furnace with frequent start - stop cycles, the high - strength refractory clay insulation bricks have demonstrated remarkable performance. For instance, in a certain chemical plant, the previous furnace lining made of ordinary clay bricks had a service life of only about 6 - 8 months, with high energy consumption due to poor insulation. After replacing it with high - strength refractory clay insulation bricks, the furnace lining's service life was extended to over 12 months, and the energy consumption was reduced by about 15 - 20%.

$A chemical furnace using high - strength refractory clay insulation bricks$

Another case involved a furnace experiencing severe thermal shock failures. The high - strength refractory clay insulation bricks, with their excellent thermal shock resistance, effectively solved this problem. The number of maintenance times was significantly reduced, and the overall operation safety of the furnace was improved.

Common Selection Mistakes and How to Avoid Them

One common mistake in selecting refractory insulation bricks is focusing solely on price while neglecting thermal stability and mechanical properties. This can lead to premature failure of the furnace lining, increased maintenance costs, and potential safety hazards.

Engineers and designers should also beware of choosing materials without considering the specific operating conditions of the furnace. For example, using a material with poor thermal shock resistance in a furnace with frequent temperature changes can result in rapid degradation of the lining.

Conclusion and Call - to - Action

By carefully considering the performance parameters, comparing different materials, and learning from real - world applications, engineers and designers can make more informed decisions when selecting refractory insulation bricks. High - strength refractory clay insulation bricks offer significant advantages in terms of energy efficiency, mechanical strength, and thermal shock resistance, which can effectively extend the furnace life, reduce energy consumption, and improve overall equipment performance.
