Comprehensive Guide to Insulating Brick Installation in High-Temperature Furnaces: The Importance of Joint Control and Expansion Joint Setup

In the current industrial landscape, high-temperature furnaces in the chemical and metallurgical sectors are significant energy consumers. Statistics show that these furnaces can account for up to 60% of the total energy consumption in some large-scale production facilities. This high energy consumption not only leads to substantial operating costs but also poses challenges to environmental protection. Therefore, the design and implementation of effective insulation layers in high-temperature furnaces have become crucial for energy conservation and sustainable development.

Physical Properties and Heat Conduction Principle of Refractory Clay Insulation Bricks

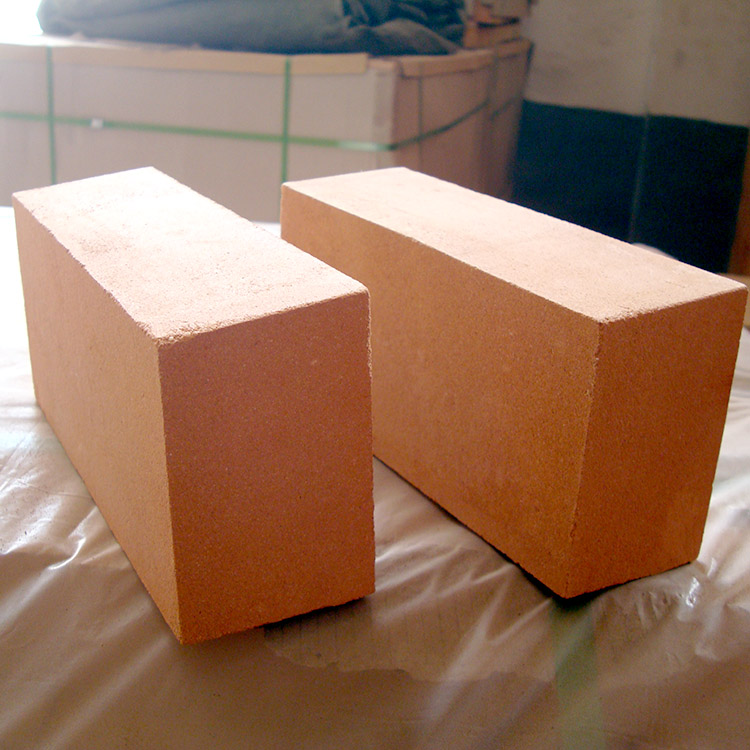

Refractory clay insulation bricks are made from high - strength refractory clay, which endows them with unique physical properties. Their low thermal conductivity is a key factor in reducing heat loss. According to experts in the field of refractory materials, the thermal conductivity of these bricks can be as low as 0.2 - 0.3 W/(m·K) at high temperatures, compared to traditional insulation materials which may have a thermal conductivity of 0.5 - 0.8 W/(m·K). This significant difference means that less heat is transferred through the insulation layer, effectively reducing energy consumption.

The heat conduction principle of these bricks is based on the structure of the refractory clay. The dense yet porous structure of the clay slows down the movement of heat - carrying molecules, thereby reducing the rate of heat transfer. This structure also contributes to the excellent thermal shock resistance of the bricks.

Thermal Shock Resistance and Furnace Lining Stability

Thermal shock resistance is another important property of refractory clay insulation bricks. In high - temperature furnaces, the temperature can fluctuate rapidly during the heating and cooling processes. A material with poor thermal shock resistance may crack or spall under such conditions, which can compromise the stability of the furnace lining. However, refractory clay insulation bricks can withstand rapid temperature changes without significant damage.

Research has shown that these bricks can maintain their structural integrity after more than 50 thermal shock cycles between 800°C and room temperature. This ability to resist thermal shock ensures the long - term stability of the furnace lining, reducing the frequency of repairs and replacements and ultimately saving costs for the enterprise.

Key Construction Nodes

Gap Control

During the construction of the insulation layer, gap control is of utmost importance. The gaps between insulation bricks should be as small as possible to minimize heat leakage. Experts recommend that the gap width should be controlled within 1 - 2 mm. A larger gap can create a path for heat to bypass the insulation layer, significantly reducing the insulation effect.

Expansion Joint Arrangement

As the temperature in the furnace changes, the insulation bricks will expand and contract. Therefore, expansion joints need to be properly arranged to accommodate these dimensional changes. The expansion joint should be filled with a flexible and heat - resistant material, such as ceramic fiber. The spacing of the expansion joints should be determined based on the size of the furnace and the type of insulation bricks, usually ranging from 1 - 2 meters.

Inter - layer Sealing Treatment

Inter - layer sealing is also a critical step in the construction process. A well - sealed inter - layer can prevent hot air from penetrating between the layers of insulation bricks. Special sealing materials, such as high - temperature resistant adhesives, should be used to ensure a tight seal. This can further enhance the insulation performance of the furnace lining.

Industry Case Analysis

In a chemical enterprise, after replacing the traditional insulation materials with refractory clay insulation bricks in their high - temperature furnace, they achieved a 20% reduction in energy consumption. The service life of the furnace lining was also extended from 2 years to 3 years. Similarly, a metallurgical enterprise reported a 15% improvement in furnace efficiency and a significant reduction in carbon emissions after the application of these bricks.

These cases clearly demonstrate the positive impact of refractory clay insulation bricks on energy conservation, environmental protection, and the overall efficiency of high - temperature furnaces. For technical and management personnel in the chemical and metallurgical industries, refractory clay insulation bricks offer a reliable solution for achieving green and low - carbon transformation.

If you are interested in learning more about how our refractory clay insulation bricks can help your enterprise achieve energy - saving and efficiency - improving goals, please contact us for a professional solution.
